Superior Handling Terrain Adaptable Forklift Truck For Improves The Overall Efficiency Of Material Handling Operations
1. Products Description
MCLLROY-Forklifts Rough Terrain Forklifts are powered by diesel or LPG and come in 2 and 4 wheel drive. Built to do the work, these robust machines offer design advantages for enhanced manoeuvrability and performance. Powered by diesel fuel or gas ensures they can be used outdoors, as well as indoors. Load capacities range between 2.5 and 5 tonnes for optimum performance and durability.
2. Specification
| Specification | FD30T-4WD | FD30T - 2WD |
| Rate Loading Weight | 3000 KG | 3000 KG |
| Mast Stage | 2 Normal /2 Fully free/3 Fully free | 2 Normal /2 Fully free/3 Fully free |
| Lifting Height | 3000/4000/4500/5000/6000/6500mm | 3000/4000/4500/5000/6000/6500mm |
| Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
| Rate Power | 36.8/35.3/35.4 KW | 36.8/35.3/35.4 KW |
| Transimission | Hydraulic Manual /Auto 2R,0,2F | Hydraulic auto 1R,0,1F |
| Fork Size | 920/1070/1220/1500 mm | 920/1070/1220/1500 mm |
| Tire Type | Air / Solid | Air / Solid |
| Front Tire | 12-16.5-10PR | 12-16.5-14PR |
| Rear Tire | 12-16.5-10PR | 27x10-12-12PR |
| Overhead Guard Height | 2450 mm | 2210 mm |
| Overall Length(with / without fork) | 4160 /3090 mm | 2940 mm |
| Overall Width | 1600 mm | 1550 mm |
Overall Height
(Mast extended/lowered) | 3000mm : 4350/2235 mm | 3000mm : 4350/2185 mm |
| Total Weight | 4900 KG | 4900 KG |
Angle of Mast inclination
(forward /backward) | 6°/12° | 5°/15° |
| Load Center | 500 mm | 500 mm |
| Minimum Ground Clearance(no-loading) | 250 mm | Mast point: 220 mm
Wheel base center point: 310 mm |
| Wheel Base | 1840 mm | 1850 mm |
| Wheel Track | Front: 1250 mm
Rear: 1320 mm | 1250/1205 mm |
| Minimum Turning Radius | 3960 mm | 2910 mm |
| Max.Travel Speed(no-loading) | 30 km/h | 22 km/h |
| Max. Lifting Speed(full/no-Loading) | 450 / 550 mm/s | 440 mm/s |
| Max. Descending Speed | Full-loading ≤ 600 mm/s
No-loading ≥ 300 mm/s | Full-loading ＜ 600 mm/s
No-loading ＞300 mm/s |
| Maximum Permissible Gradient(full loading) | 25 ° | 16 ° |
3. Details and Advantages
The MCLLROY’S FD30T-2/4 rough-terrain forklift is designed for sectors of activity operating under demanding conditions (construction, wood industry, events, mining...).
A true rough-terrain forklift, equipped with a ground clearance of 37 cm which gives it an excellent crossing capacity.
Its width and wheelbase optimize the stability of the machine.
The masts available on this truck are designed to operate in a difficult environment or with long loads, and they are robust and easy to use.
Equipped with a torque converter transmission, our forklift offers 4 speeds to allow you to do your work efficiently.
4.Attachment
These forklifts also have the advantage of being able to handle a variety of load types. Offering large lifting capacities, they help carry out all your operations: transporting heavy/bulky loads, loading/unloading, moving, and dumping.
The versatility of MCLLROY rough-terrain forklifts is reinforced by their compatibility with a wide range of attachments: forks, tilting carriage, bucket, side shift carriage (integrated or attached). By changing accessories, you can make any MCLLROY All-Terrain Forklift into your one stop shop for material handling equipment.
5. Optional Configurations
| 1 | Solid tires
(the Advanced brand or equivalent) |
| 2 | Automatic transmission(1-4.5Ton) |
| 3 | Sideshift |
| 4 | Thicken Toyota seat (no shock absorber) |
| 5 | Toyota seat (with shock absorber) |
| 6 | Fork positioner |
| 7 | Closed cab |
| 8 | Double front tires(1-5Ton) |
| 9 | Normal double mast:3300-4000mm. |
| 10 | Full free double mast:3000-4000mm. |
| 11 | Full free triplex mast:4500-7500mm. |
| 12 | Fork length:920/1370/1550 mm |
| 13 | Extension fork |

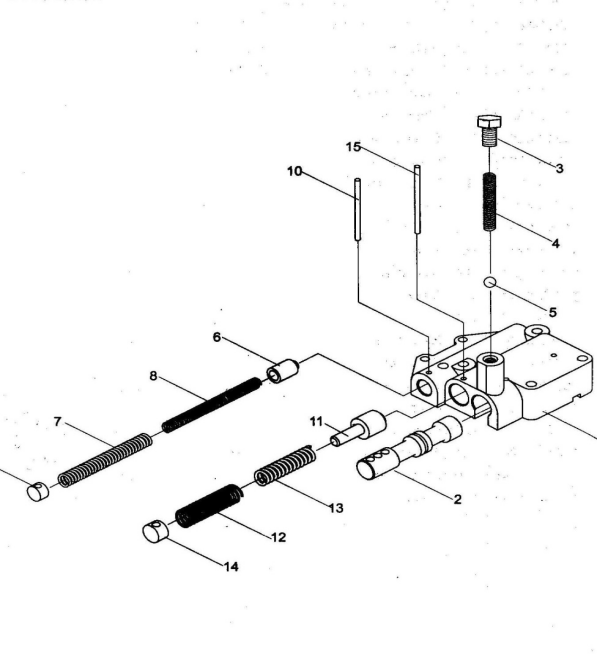

6. Explosive View Of Main Parts
| No | Part No | Description | Q'ty | Remark |
| A | FD20-35-C1052 | Control valae assembly | 1 | |
| 1 | FD20-35-C1172 | Body,valve | 1 | |
| 2 | FD20-35-C1173 | Selector | 1 | |
| 3 | FD20-35-C1174 | Plug | 1 | |
| 4 | FD20-35-C1175 | Spring | 1 | |
| 5 | FD20-35-C1176 | Ball | 1 | |
| 6 | FD20-35-C1177 | Piston | 1 | |
| 7 | FD20-35-C1178 | Spring | 1 | |
| 8 | FD20-35-C1179 | Spring | 1 | |
| 9 | FD20-35-C1180 | plug | 1 | |
| 10 | FD20-35-C1181 | Pin,lock | 1 | |
| 11 | FD20-35-C1182 | Spool | 1 | |
| 12 | FD20-35-C1183 | Spring | 1 | |
| 13 | FD20-35-C1184 | Spring | 1 | |
| 14 | FD20-35-C1185 | Plug | 1 | |
| 15 | FD20-35-C1186 | pin,lock | 1 | |
