Engine Power 76 KW Wheel Shovel Machine Wheel Loader,Tire 1670-24 Mini Compact
1. Products Description of MCLLROY Wheel Loader
The MCLLROY wheel loader has become immensely popular in the fields of construction, agriculture, and gardening, owing to its superior quality, efficiency, and productivity. Its powerful engine and durable chassis allow it to tackle even the most challenging muddy terrain, while its agile turning capabilities make it ideal for navigating tight spaces. Moreover, the loader's exceptional unloading height makes it a valuable asset for loading tasks.
Regarding the axle of this loader, we prioritize the use of cast steel small axle housing over the market options like iron or Isuzu axles. The axles play a critical role in the loader's overall performance and stability, particularly when subjected to severe working conditions that generate substantial internal forces. A high-quality axle ensures that operators can operate the loader safely and confidently, leading to maximum productivity.
2. Specification of MCLLROY Wheel Loader
| MODEL | MCL 940 |
| ENGINE | Engine Model | Yun Nei 4102 Supercharged |
| RPM | 2400 |
| Rated Power | 76 kW |
| Emissions | EU Stage II |
| WEIGHTS | Operating Weight | 6100 kg |
| Rated Load | 2800 kg |
| BUCKETS | Bucket Capacities | 1.2 m³ |
| TRANSMISSION | Max. Travel Speed | 28 km/h |
| Gear Box | CVT
280 torque converter |
| Axle | Large hub reductro |
| Axle Base | 2560 mm |
| Brake | Disc Brake |
| HYDRAULIC SYSTEM | Hydraulic Cycle time - lift | ≤ 6 s |
| DIMENSIONS(APPROXIMATE) | Min. Ground Clearance | 400 mm |
| Wheel Base | 1640 mm |
| Reach at Max.Dump Height | 3600 mm |
| Dump Reach | ≤ 650 mm |
| Overall Length - With Bucket | 6240 mm |
| Overall Width | 2040 mm |
| Overall Height | 2830 mm |
| OPERATING SPECIFICATIONS | Tyre Size | 1670-24 |
| Joystick | Mechanical |
| Min. turning radius | ≤ 6200 mm |

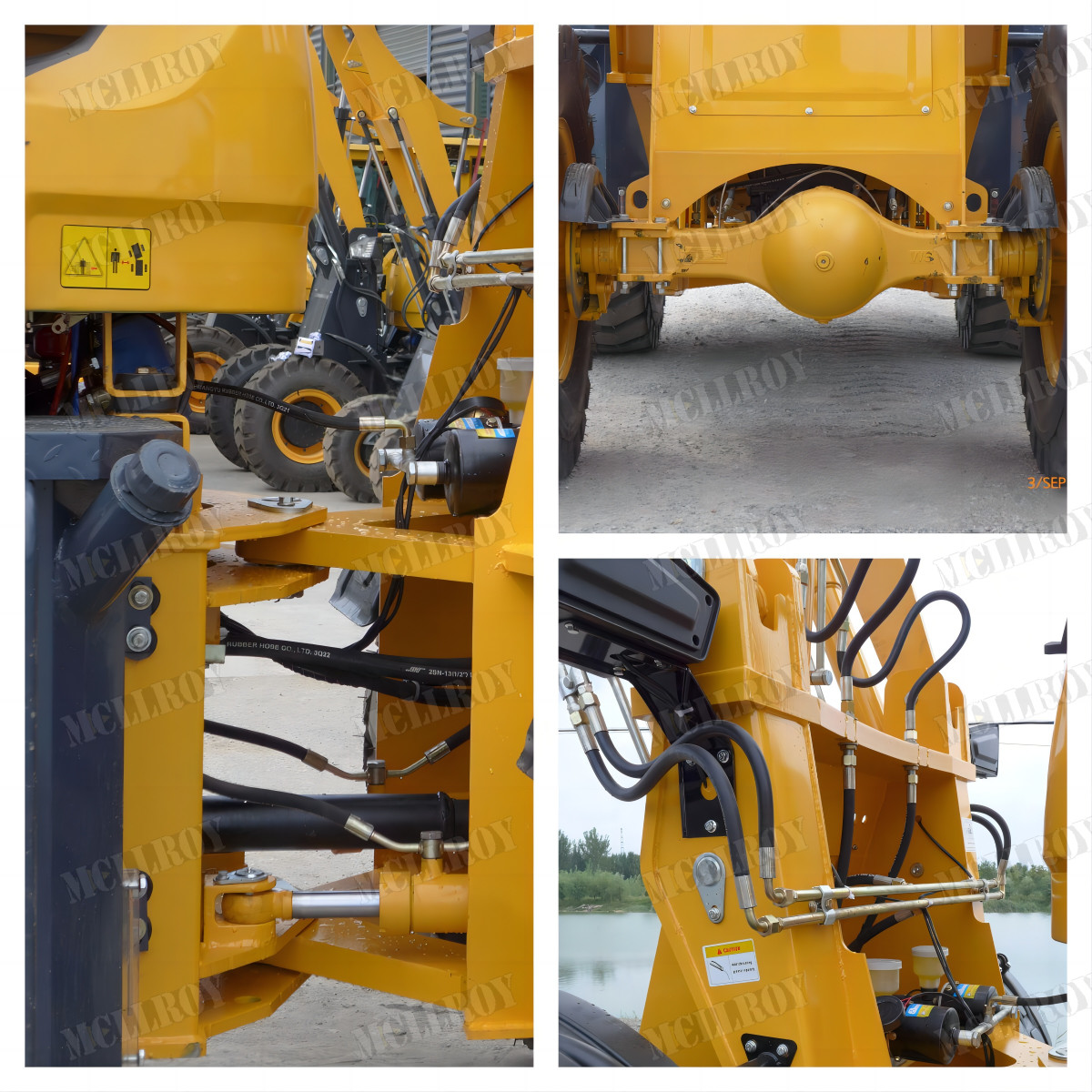

3. Details and Advantages of MCLLROY Compact Wheel Loader
- The stable and proven hydraulic system, with its triple-wire hydraulic hoses, assures quick cycle times and efficient operation.
- Featuring an anti-rollover cab, safety is guaranteed, with the use of high pressure tempered glass minimizing the risk of injury, even in the event of glass breakage.
- The ergonomic adjustable seat ensures less tiring driving.
- The well-designed dashboard and integrated hydraulic operating lever make driving simple and easy to handle.
4.Attachment of MCLLROY Wheel Loader
The MCLLROY compact wheel loader comes with an available optional quick hitch, granting users the ability to rapidly interchange between an extensive range of attachments, which includes hay grapples, grass forks, wood forks, timber grapples, pallet forks, bale grapples, four-in-one buckets, straight snow blades, and many more. This feature notably amplifies the machine's flexibility and versatility, rendering it an essential tool for an extensive array of applications, such as construction sites, recycling facilities, and agricultural work.
