Quick Deployment Interal Combustion Forklift Truck Working Pressure18.5 Mpa
1. Products Description
The MCLLROY 1 to 3 tonne IC engine forklift trucks have demonstrated their effectiveness and legendary reliability over many years in highly demanding applications.
Numerous generations of forklift truck owners have developed a strong affinity and reliance on these robust and highly capable machines.
MCLLROY further enhances these exceptional qualities.
Being environmentally friendly, and possessing the quality, reliability, and investment value comparable to diamonds, the name "Green Diamond" is truly fitting.
Operators will appreciate the low noise and vibration levels, comfortable working environment, and the latest Ergo Centric advancements in steering, hydraulic, and other controls.
Additionally, the inclusion of the IPS2 Integrated Presence System and advanced brake systems will contribute to ensuring operator safety.
Furthermore, every system and component has been meticulously designed and selected to minimize downtime and maintenance expenses.
2. Specification
| Specification | FD20 |
| Rate Loading Weight | 2000 KG |
| Mast Stage | 2 Normal /2 Fully free/3 Fully free |
| Lifting Height | 3000/4000/4500/5000/6000/6500mm |
| Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
| Rate Power | 36.8/35.3/35.4 KW |
| Transimission | Manual/Hydraulic auto 1R,0,1F |
| Fork Length | 920/1070/1220/1500 mm |
| Tire Type | Air / Solid |
| Front Tire | 7.00-12-12PR |
| Rear Tire | 6.00-9-10PR |
| Overhead Guard Height | 2140 mm |
| Overall Length(with/without fork) | 3523/2453 mm |
| Overall Width | 1160 mm |
Overall Height
(Mast extended/lowered) | 3000mm: 4220/2060 mm |
| Total Weight | 2660 KG |
| Front Overhang | 448 mm |
| Free Fork Height | 100 mm |
Angle of Mast inclination
(forward /backward) | 6°/12° |
| Load Center | 500 mm |
| Ground Clearance | 120 mm |
| Wheel Base | 1600 mm |
| Wheel Track | 970/970 mm |
| Minimum Turning Radius | 2220 mm |
| Max.Travel Speed(full loading) | 19 km/h |
3. Details and Advantages
The fully hydrostatic steering system, coupled with a small and responsive steering wheel, guarantees precise and effortless maneuvering.
The powerful hydraulic system provides high residual capacities for comfortable handling of heavier loads.
The brakes, comprised of fully hydrostatic drum brakes, offer excellent stopping power.
Powerful drum brakes provide excellent control with minimal effort and are straightforward to maintain.
The centrally mounted, oscillating steer axle ensures a comfortable ride and optimal ground contact, even on rough work surfaces.
4. Optional Configurations
| 1 | Solid tires
(the Advanced brand or equivalent) |
| 2 | Automatic transmission(1-4.5Ton) |
| 3 | Sideshift |
| 4 | Thicken Toyota seat (no shock absorber) |
| 5 | Toyota seat (with shock absorber) |
| 6 | Fork positioner |
| 7 | Closed cab |
| 8 | Double front tires(1-5Ton) |
| 9 | Normal double mast:3300-4000mm. |
| 10 | Full free double mast:3000-4000mm. |
| 11 | Full free triplex mast:4500-7500mm. |
| 12 | Fork length:920/1370/1550 mm |
| 13 | Extension fork |
5. Attachment
A diverse selection of high-quality masts and attachments ensures precise compatibility and optimal configuration for various applications.
The carriage design features a single center bar, providing a large fork adjustment range that enhances functionality.
The range of available attachments includes a paper roll clamp, rotating bale clamp, load stabilizer, multi-drum clamp, bale clamp, drum clamp, dumping clamp, crane arm, string pole, sideshifter, rotating forks, fork extender, load release device, carton clamp, push-pull device, bucket, hook, and lengthened fork.

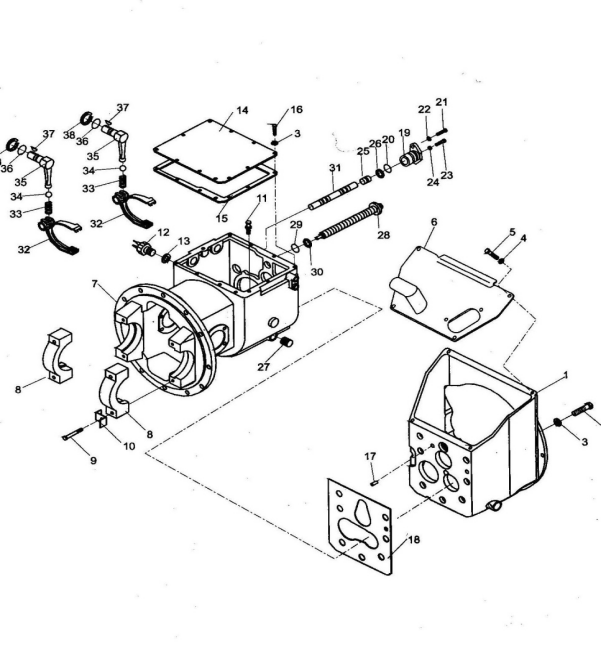

6. Explosive View Of Main Parts
| No | Part No | Description | Q'ty | Remark |
| 1 | FD30MA-C1116 | Clutch housing | 1 | |
| 2 | FD30MA-C1117 | Bolt | 7 | |
| 3 | GB/T93-1987 | Washer,lock | 24 | |
| 4 | FD30MA-C1118 | Washer,lock | 4 | |
| 5 | FD30MA-C1119 | Bolt | 4 | |
| 6 | FD30MA-C1120 | Cover,case | 1 | |
| 7 | FD30MA-C1122 | Casa,transmission | 1 | |
| 8 | FD30MA-C1123 | Cap,bearing | 2 | |
| 9 | FD30MA-C1124 | Bolt | 4 | |
| 10 | FD30MA-C1125 | Plate,lock | 4 | |
| 11 | FD30MA-C1126 | Air Breather | 1 | |
| 12 | FD30MA-C1127 | Switch,back-lamp | 1 | |
| 13 | FD30MA-C1129 | Washer | 1 | |
| 14 | FD30MA-C1130 | Case,cover | 1 | |
| 15 | FD30MA-C1131 | Gasket,case cover | 1 | |
| 16 | FD30MA-C1132 | Bolt | 10 | |
| 17 | FD30MA-C1133 | Pin | 2 | |
| 18 | FD30MA-C1134 | Gasket,clutch housing | 1 | |
| 19 | FD30MA-C1135 | Supprter,arm shaft | 1 | |
| 20 | FD20-35-C1010 | O-ring | 1 | |
| 21 | GB5783-1986 | Bolt | 2 | |
| 22 | FD30MA-C1136 | Washer,lock | 2 | |
| 23 | FD30MA-C1137 | Bolt | 1 | |
| 24 | GB/T6184-1986 | Nut | 1 | |
| 25 | FD30MA-C1139 | Plug | 1 | |
| 26 | FD20-35-C1012 | O-ring | 1 | |
| 27 | FD30MA-C1140 | Plug | 1 | |
