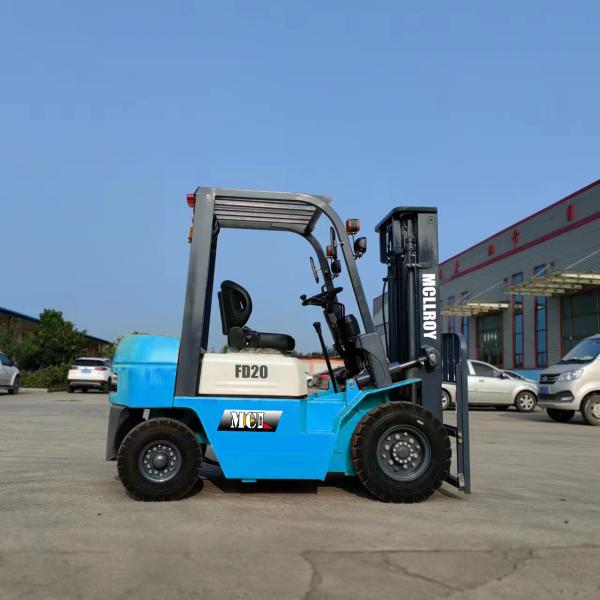

Smooth Operation Diesel Forklift Truck Ground Clearance 120 mm
1. Products Description
Developed to help your operator achieve maximum productivity, while minimizing running costs,MCLLROY sets the highest standards for IC engine counterbalance forklift trucks.
With its exceptional fuel economy,durable components and low-maintenance design,MCLLROY makes perfect business sense. What's more,it comes with a package of advanced features, fitted as standard, that offers true value for money.
Fast, stable and exceptionally powerful,MCLLROY forklift trucks offer the optional potent combination of high efficiency, lower emissions and very low noise levels.
To that,MCLLROY Forklift Trucks has added a host of ergonomic features to maximize comfort,control and precision.The result is a forklift that can be relied upon to deliver top performance,whatever the application, whatever the conditions.
2. Specification
| Specification | FD20 |
| Rate Loading Weight | 2000 KG |
| Mast Stage | 2 Normal /2 Fully free/3 Fully free |
| Lifting Height | 3000/4000/4500/5000/6000/6500mm |
| Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
| Rate Power | 36.8/35.3/35.4 KW |
| Transimission | Manual/Hydraulic auto 1R,0,1F |
| Fork Length | 920/1070/1220/1500 mm |
| Tire Type | Air / Solid |
| Front Tire | 7.00-12-12PR |
| Rear Tire | 6.00-9-10PR |
| Overhead Guard Height | 2140 mm |
| Overall Length(with/without fork) | 3523/2453 mm |
| Overall Width | 1160 mm |
Overall Height
(Mast extended/lowered) | 3000mm: 4220/2060 mm |
| Total Weight | 2660 KG |
3. Details and Advantages
All-round visibility together with ergonomic design and layout of all controls improves comfort, reduces fatigue, increases precision and raises productivity.
Strong, high-visibility mast allows handling of heavy loads in tough environments with total confidence.
Use of small diameter lift cylinders and strategic locating of hydraulic lines ensure excellent forward visibility through the wide mast.
Plus Cab panel cabin offering outstanding visibility through laminates glass,and all-round protection from weather elements.
Clear-view construction allows exceptional visibility through mast, fork carriage and overhead guard for maximum operator safety and output.
4. Optional Configurations
| 1 | Solid tires
(the Advanced brand or equivalent) |
| 2 | Automatic transmission(1-4.5Ton) |
| 3 | Sideshift |
| 4 | Thicken Toyota seat (no shock absorber) |
| 5 | Toyota seat (with shock absorber) |
| 6 | Fork positioner |
| 7 | Closed cab |
| 8 | Double front tires(1-5Ton) |
| 9 | Normal double mast:3300-4000mm. |
| 10 | Full free double mast:3000-4000mm. |
| 11 | Full free triplex mast:4500-7500mm. |
| 12 | Fork length:920/1370/1550 mm |
| 13 | Extension fork |
5. Attachment
Wide range of high-quality masts and attachments delivers precise compatibility and an ideal configuration for each application.
Carriage design includes single centre bar with consequently large fork adjustment range for great functionality.
/ Paper roll clamp / Rotating bale clamp / Load stabilizer / Multi-drum clamp / Bale clamp / Drum clamp / Dumping clamp / Crane arm / String Pole / Sideshifter / Rotating forks / Fork extensioner / Load release device / Carton clamp / Push-pull device / Bucket / Hook / Lengthened fork
6. Explosive View Of Main Parts
| No | Part No | Description | Q'ty | Remark |
| 1 | FD30MA-D1004 | Plate | 1 | |
| 2 | FD30MA-D1122 | Packing | 1 | |
| 3 | FD30MA-D1123 | Packing | 1 | |
| 4 | FD30MA-D1124 | Oil,sensor | 1 | |
| 5 | FD30MA-D1125 | Cap | 1 | |
| 6 | GB5783-1986 | Bolt | 10 | |
| 7 | GB/T93-1987 | washer | 12 | |
| 8 | JB/T8870-1999 | Clip | 8 | |
| 9 | FD30MA-D1126 | Tube | 1 | |
| 10 | FD35HD-D1104 | Tube | 1 | |
| 11 | GB/T5783-1986 | Bolt | 5 | |
| 12 | GB/T93-1987 | washer | 5 | |
| 13 | FD30MA-D1127 | Plug,drain | 1 | |
| 14 | JB/T982-1977 | washer | 1 | |
| 15 | FD30MA-D1128 | Cap | 1 | |
| 16 | FD30MA-D1129 | Sedimentor | 1 | Others |
| | FD30HM-D1101 | Sedimentor | 1 | FD30-V |
| 17 | GB/T5783-1986 | Bolt | 2 | |
| 18 | GB/T93-1987 | washer | 4 | |
| 19 | FD35HD-D1105 | Bracket | 1 | |
| 20 | GB/T5783-1986 | Bolt | 2 | |
| 21 | GB/T93-1987 | washer | 4 | |
